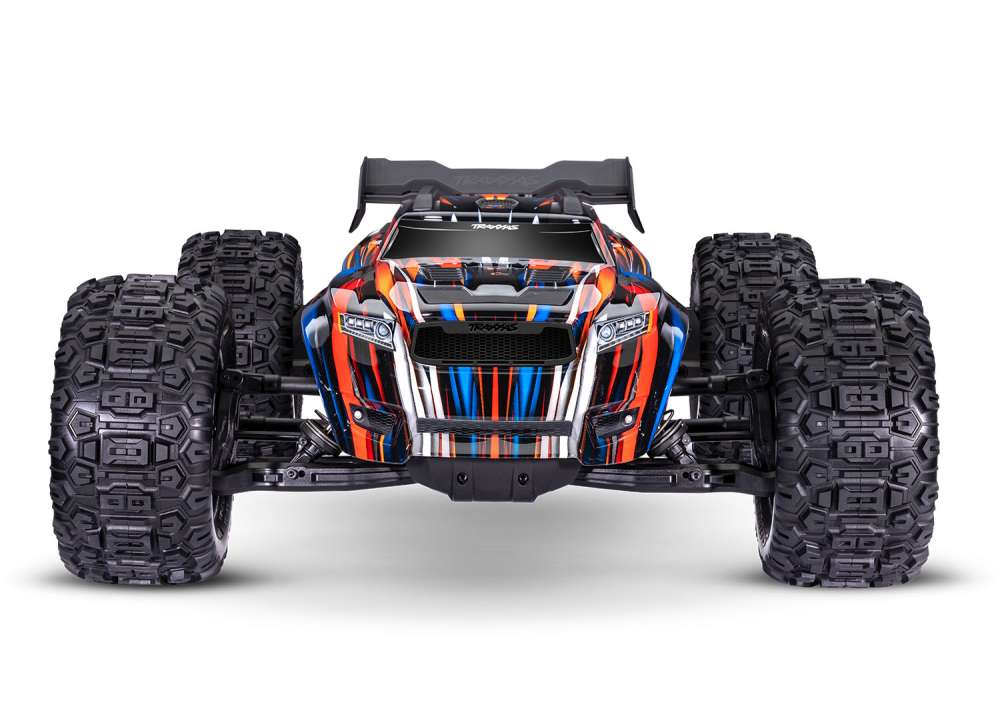

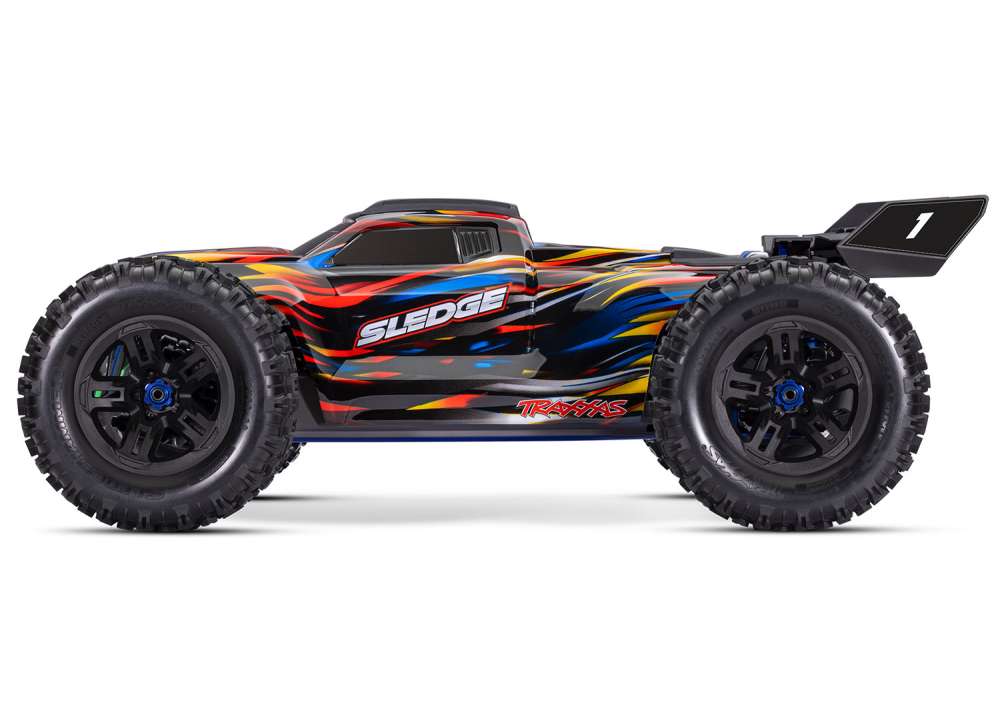

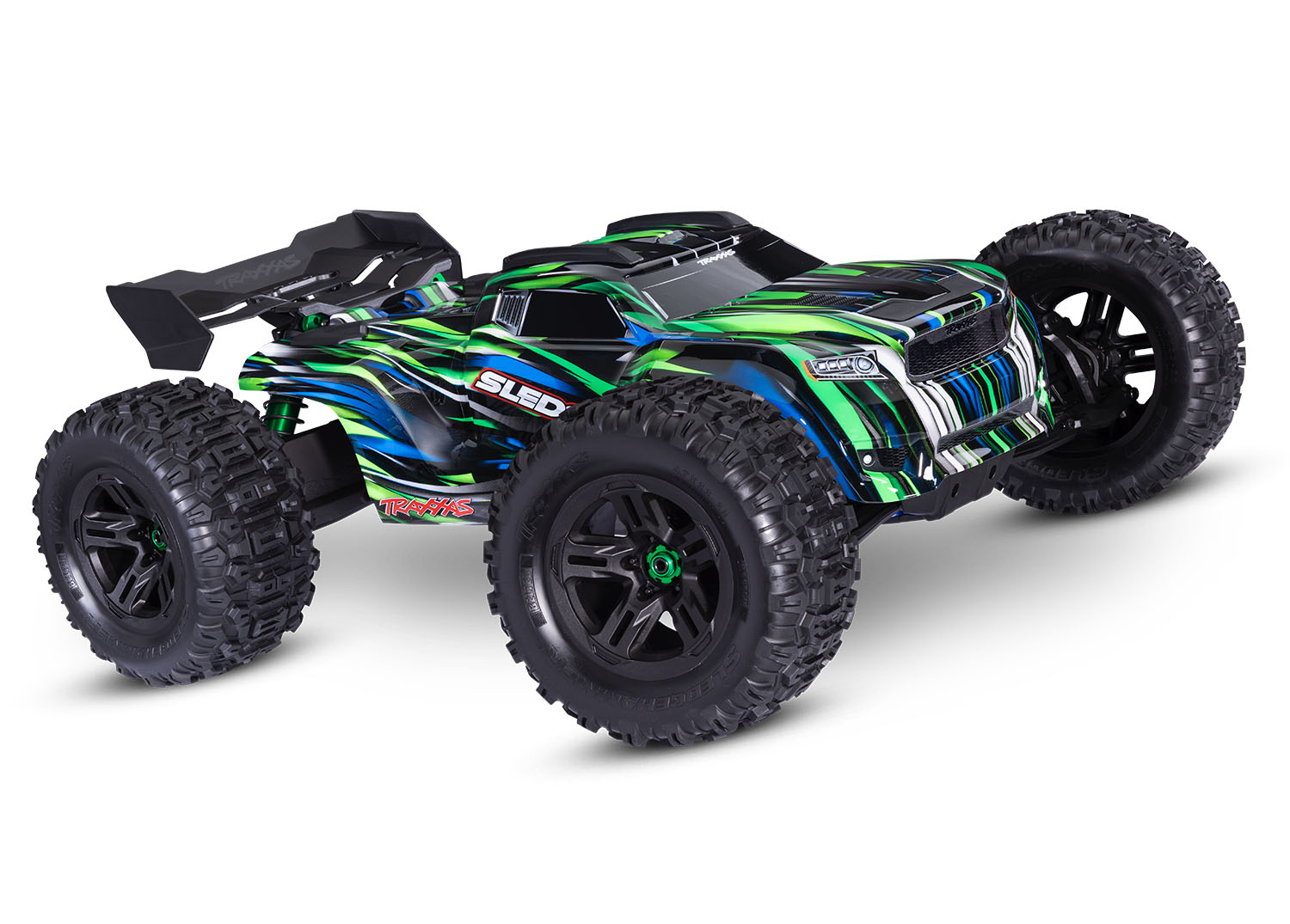

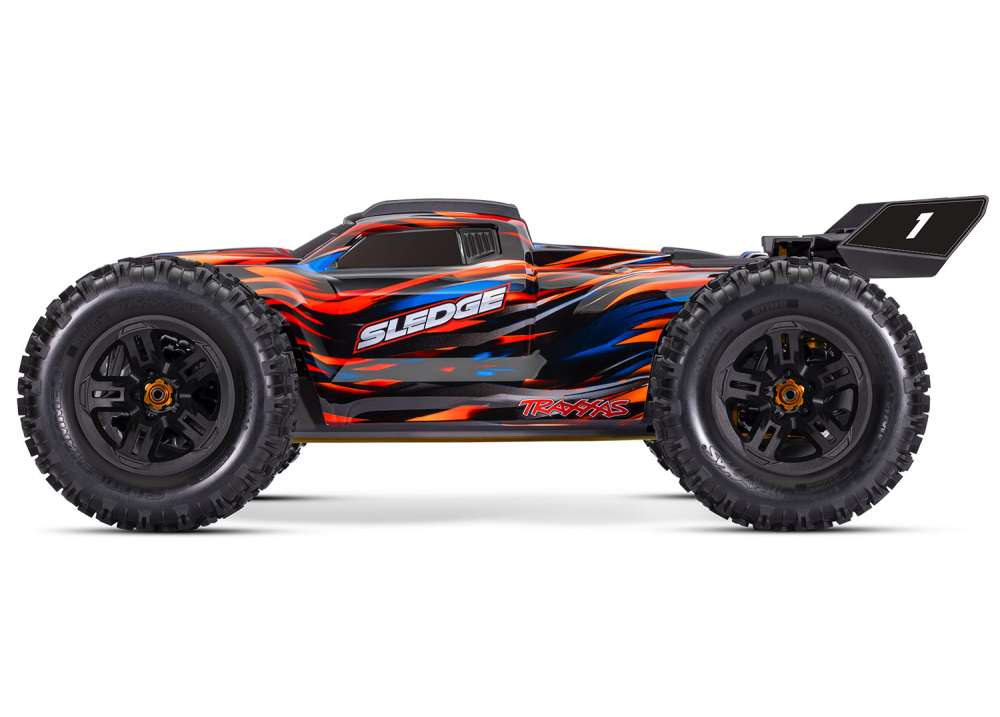

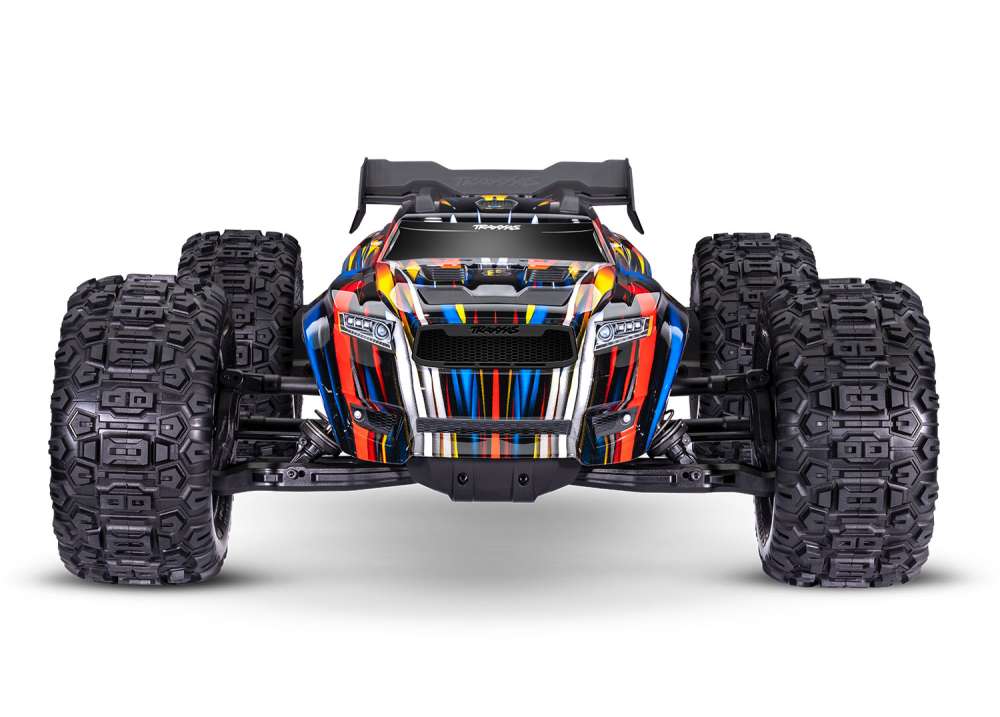

TRAXXAS SLEDGE BELTED
Redefining 1/8 Scale Off-Road
Engineered. Tested. Built to a higher standard. Sledge® is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust. New belted Sledgehammer® tires limit high-speed tire expansion for a larger, flatter contact patch and game-changing high-speed precision and control.
Engineered for 6s Power: Sledge is the only truck in this class with a properly sized, 6s-capable driveline. Bigger gears. More steel. Basically bombproof. Sledge smashes the status quo to be the new standard for extreme 6s durability.
Superior Chassis Strength: Sledge is engineered to have the strongest chassis in the class. The triangulated chassis structure integrates a deep-formed aluminum plate with a multi-point composite truss system and the patent-pending full-length T-Bar™. Built on a solid foundation, Sledge is strongest where it matters most.
Clipless Body: Remove and replace the body in just seconds with exclusive patent-pending clipless body solutions engineered by Traxxas. Sledge’s clipless body goes on smoothly with a satisfying snap. The body is designed to come off when YOU release it.
Monster Servo: Sledge is equipped with a high-performance metal gear servo that packs massive torque inside a heat dissipating aluminum center case. Powerful and reliable steering authority is assured with no upgrade required.
VXL-6s Power System: The Velineon VXL-6s features new hardware and new tuning specifically for the 2000 Kv motor. Together they deliver substantially more power under the curve for increased mid-range punch and hard-charging acceleration you can see and feel.
Belted Sledgehammer Tires: Sledge’s belted Sledgehammer® tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.
Specification
Model information
Specifications:
Length (including wing): 23.78 inches (604 mm)
Width: 18.10 inches (459 mm)
Ground Clearance: 1.95 inches (50 mm)
Weight (no battery): 12.74 pounds (5.77kgs)
Height: 8.43 inches (214 mm)
Wheelbase: 15.10 inches (384 mm)
Front Shock Length: 5.12 inches (128 mm)
Rear Shock Length: 5.67 inches (144 mm)
Tire Diameter: 6.7 x 3.3 inches (170 mm x 84 mm)
Wheels: 3.8 inches (97 mm)
Speed Control: Velineon® VXL-6s
Motor (electric): Velineon® 2000 Kv Brushless
Gear Pitch: Module 1.0
Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
Differential Type: Sealed, hardened steel bevel, limited slip
Chassis Structure / Material: 3.2 mm aluminum plate
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank w/metal servo arm
Radio System: 2-Channel, TQi™ 2.4 GHz Transmitter with TSM® receiver
Servo: Waterproof, metal-gear (347 oz-in torque)
Top Speed: 70+ mph
Skill Level: 4
Needed to Complete:
(1) Dual 5000 mAh 3-cell 11.1 V Power Cell LiPo batteries
(1) Traxxas EZ-Peak® Live 4s-capable charger
(4) "AA" Batteries (transmitter)
